| Item No.: | FY255 |

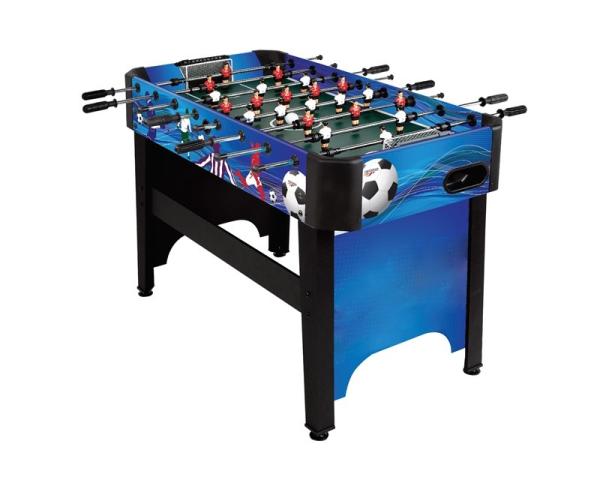

| Description: | FOOTBALL TABLE MERCURY-XT |
| Country of origin: | China |
| Component | Specification |
| Table Size | 121.8 x 61 x 83cm |
| Playing surface dimensions | 104.8 x 57.3cm |
| Lamination of aprons | Both side of side & end aprons with color graphics designed paper laminated, both sides color are same. Same as signed sample. With paper edge. Please note the paper laminated must be double bond, 200 pounds, On the surface of the film is not easy to peeling. |
| Soccer table side aprons | 19.7 x 1.5cm (Thickness) MDF (E1 or E0) . pre-drilled holes, ball entry, rod hole covers |
| Ball entry: | 2 plastic ball entry rings, PP black, postion on side aprons, 34mm inner dia. Postion: Distance top edge of the side panel 33mm. |
| Rod bushing: | 16pcs black PP rod bushing |
| Soccer table end aprons | 3.3 * 8.5 x 19.7 X 0.9cm (Thickness) MDF (E1 or E0) . pre-drilled holes, The modelling of inclined plane. |
| Foot ball goal: | Metal goal with white paint . Size: 165MM * 92MM |
| Ball returns | 2 end ball returns, coverd by black PVC surrounding, 13.5cm L* 5.5cm width . Postion: Distance right edge of end panel 30mm, Distance bottom edge of end panel 35mm |
| Manual scorers | 2 pieces black with white number scorers, size 21 x 1.5cm |
| Apron corner | Black plastic apron corner | |
| Soccer table playfield | 106.5 x 58.4 x 0.5cm (Thickness) MDF (E1 or E0) with green PVC lamination & white print, Same as the signed sample. |
| Legs | L -shape legs, 8.8 * 5.4 x 1.2cm thickness MDF (E1 or E0) both side with black PVC lamination. |
| Playfield Support Bars | 2 pieces of 12mm MDF, pre-drilled holes. Size: 12mm * 637mm L. Position: Distance the bottom edge of side panel 78 mm. |
| Leg side panels | 2 braces - size: 100.02 x 9.8 x 1.2cm (Thickness) MDF (E1 or E0) Outside side with paper laminated and inside with black PVC lamination, pre-drilled holes, Postion: Distance the bottom of leg 320 mm. |
| End leg panels | 2 braces - size: 54.5 x 48 x 0.3cm (Thickness) MDF (E1 or E0) outside with paper laminated and inside with black PVC lamination, pre-drilled holes, Postion:Distance the bottom of leg 112 mm. |
| Leg levellers | 4 pieces leg levellers, 3.8cm diameter, black |
| Player rods | 8 pieces of 12.7mm (thickness 0.9mm) chrome plated hollow steel rods. 4pcs rods with 3 holes with size 920mm L, 2pcs rods with 2 holes with size 1100mm L , 2pcs rods with 5 holes with size 860mm L. |
| Player rod end caps | 8 pieces of PVC end cap |
| Player | 22 pieces (3-5-2-1) multicolor un-assemble players, Size: 105mm L |
| Bumpers | 16 pieces of rubber bumper, black |
| Stop rings | 4pcs black plastic stop rings, Attached by bolt and nut. |
| Washers | 16 pieces of washer, black |
| Hand grips | 8 pieces soft PVC hand grips, black Size: 93mm L . Same as signed sample. |
| Soccer accessories | 2 balls - Black/white, 2balls- White 32mm dia. |
